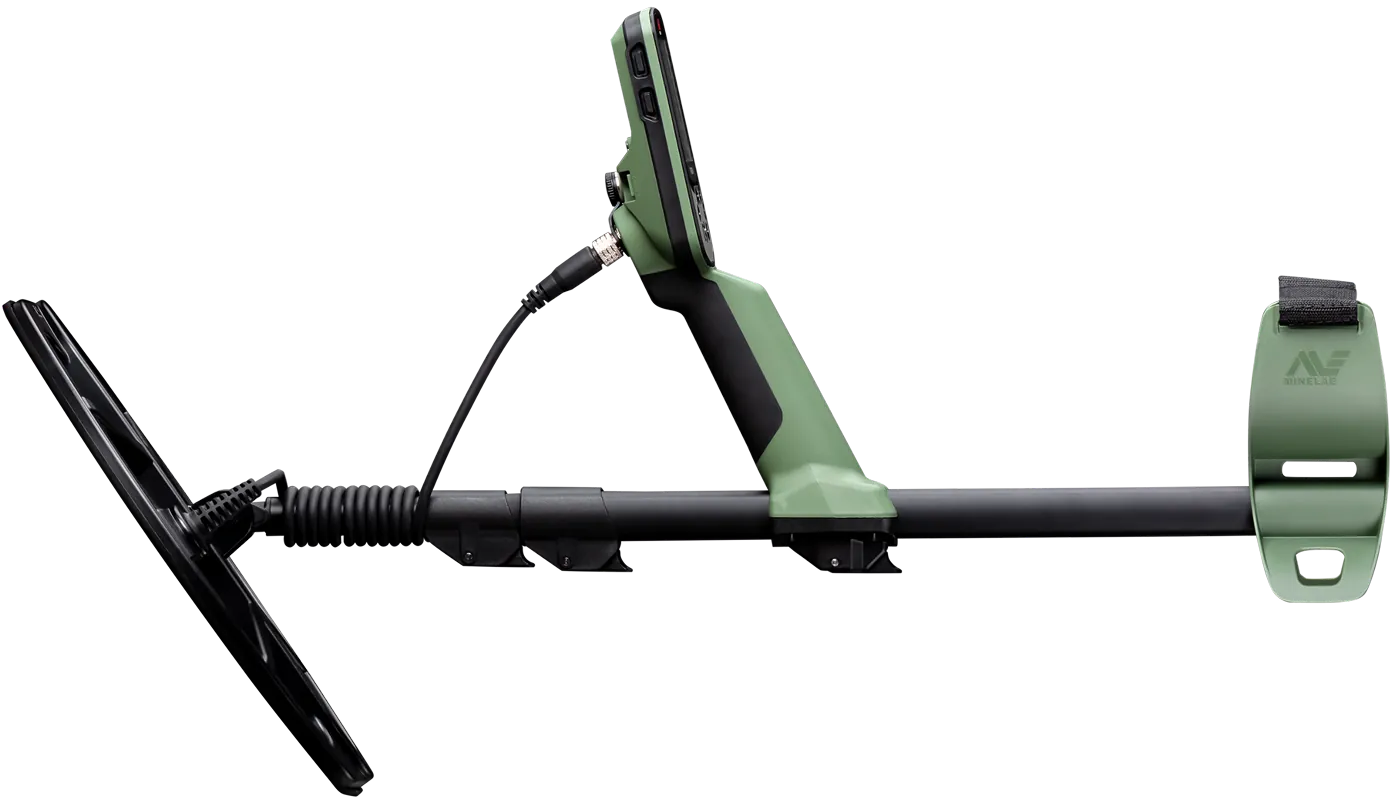

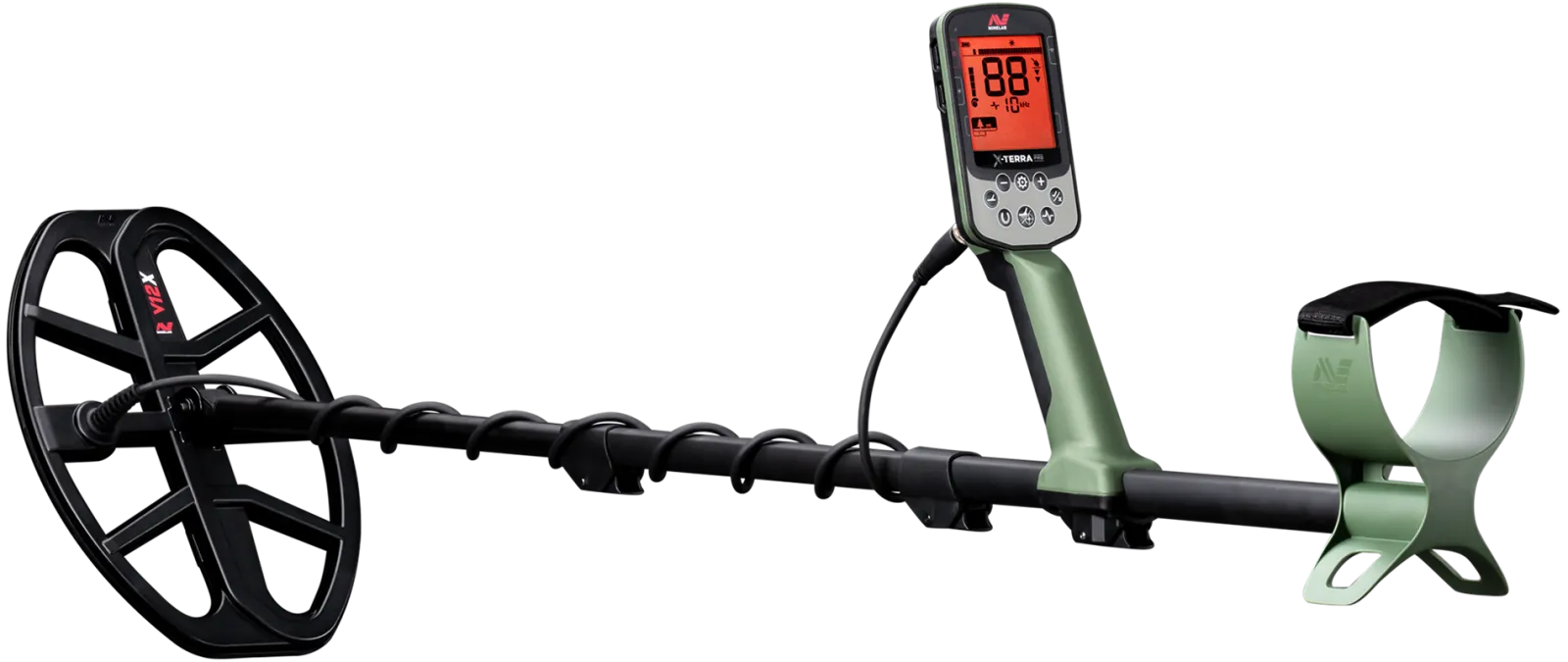

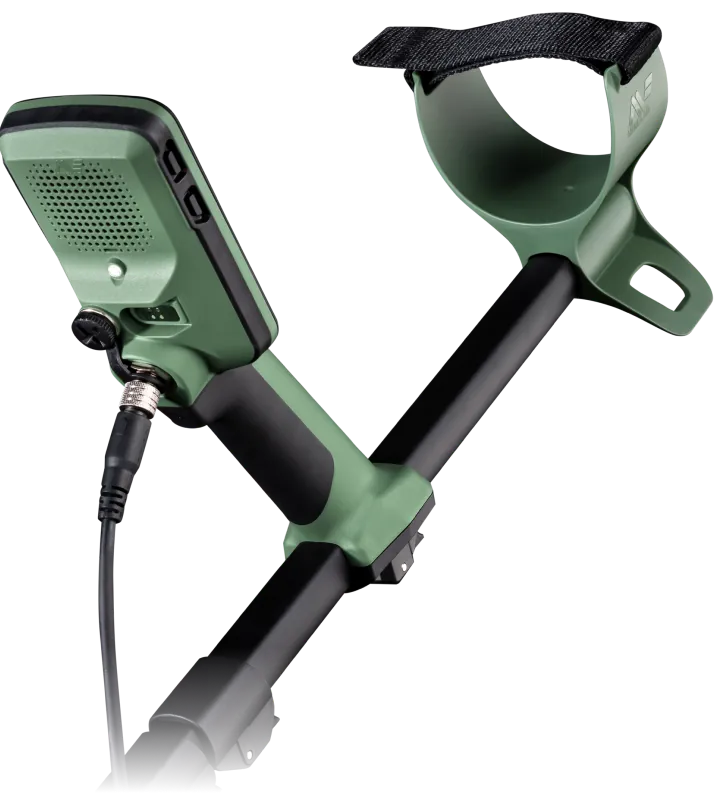

Minelab X-Terra Pro overview

If your work is hobbyists hunting parks, beaches and old settlement sites, the X-Terra Pro from Minelab is worth a look. On paper that means a detection depth of 4 feet and selectable multi-frequency operation.

The features that actually get used are pro-switch technology, fully waterproof (ip68) and full audio control — the rest is nice to have but these are why coin and relic hunters pick it up again.

It's one of the more requested models in this range.

Minelab X-Terra Pro key features

PRO-SWITCH technology

Manually select one of 4 single frequencies — 5, 8, 10, or 15 kHz.

Fully waterproof (IP68)

As deep as 5 meters, for the harshest conditions.

Full audio control

Available sound modes: 1, 2, 5, All Tones, and Depth, spread across 25 volume steps.

Light and vibration

Monochrome red backlight and handle vibration alert for every setting.

3 search modes with six presets

Park, Field, and Beach modes, each holding two customizable presets.

High-precision target ID

119 target ID segments for exact separation and sharp readouts.

Automatic interference cancellation and ground balance

Easier setup and more uniform performance.

Internal lithium battery

A 3.7V, 5100mAh battery sized to cover a full day out.

3-year warranty

Covers both the main unit and the coil alike.

Park 1 & 2 mode

Well fitted to gardens and crowded public areas full of debris, with two savable custom presets.

Field 1 & 2 mode

Centred on farmland and old archaeological sites, balancing depth and discrimination.

Beach 1 & 2 mode

Optimized for wet, salty sand, operating at 8 kHz to trim off-target readings at the waterline.

All Metal mode

Senses all metals with no discrimination, well fitted to a rapid first scan of a new area.

Technical specs

Depth	4 feet
Made In	Australia
Warranty	3 Years
Frequency Technology	PRO-SWITCH — manual selection from 4 frequencies
Park/Field Frequencies	5 / 10 / 15 kHz
Beach Frequency	8 kHz
Search Modes	Park 1-2, Field 1-2, Beach 1-2, All Metal
Interference Cancellation	Automatic
Sensitivity	1 to 25
Wireless Audio	Low-latency wireless audio
Volume	0 to 25
Target Tones	1, 2, 5, All Tones, Depth mode
Discrimination Segments	30 segments
Target ID	Ferrous: -19 to 0 / Non-ferrous: 1 to 99
Depth Indicator	5 levels

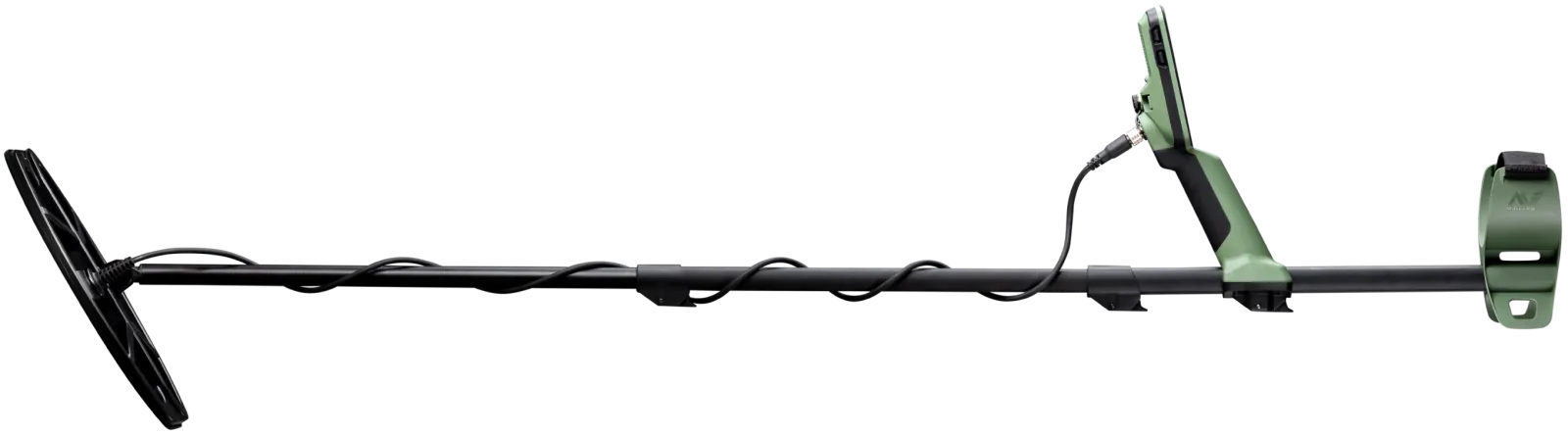

Length	Extended: 138 cm (54 in) / Folded: 63 cm (25 in)
Weight	1.3 kg (2.9 lb)
Search Coil	V12X elliptical Double-D coil, 12x9 inch

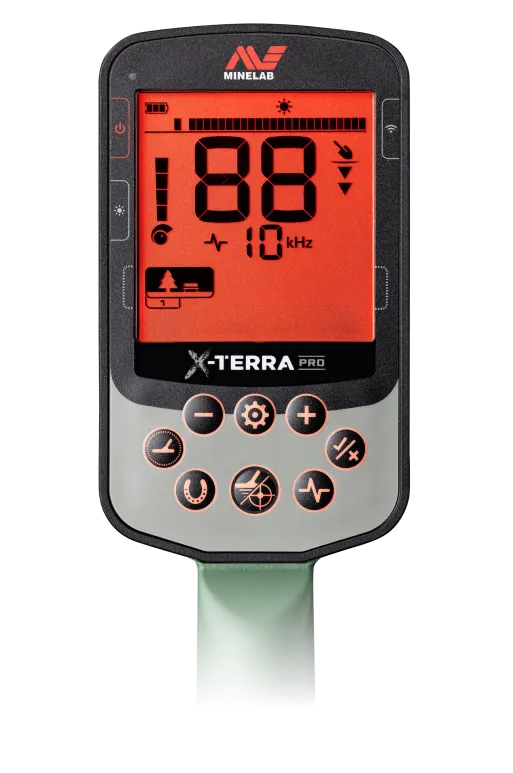

Display	Monochrome LCD display with red backlight
Battery	Internal 3.7V / 5100mAh lithium-ion battery
Water Resistance	Full device, up to 5 meters (IP68)
Vibration	Can be enabled/disabled, with special vibration for ferrous targets
Flashlight	Built-in flashlight
Manufacturer	Minelab
Capability Tier (site badge)	Advanced
