Minelab X-Terra Elite overview

The Minelab X-Terra Elite is positioned as a metal detector for hobbyists hunting parks, beaches and old settlement sites. The core spec is selectable multi-frequency operation from 15 kHz.

The features that actually get used are multi-iq technology, fully waterproof (ip68) and iron/ferrous control — the rest is nice to have but these are why coin and relic hunters pick it up again.

The box ships with 6 items, enough to be field-ready out of the case.

Minelab X-Terra Elite key features

Multi-IQ technology

Numerous parallel frequencies that run on their own, with no manual switching.

Fully waterproof (IP68)

As deep as 5 meters, for the harshest conditions.

Iron/ferrous control

-1 to 2, trimming extraneous signals in mineral-dense ground.

Full audio control

Available sound modes: 1, 2, 5, All Tones, and Depth, spread across 25 volume steps.

High-precision target ID

119 target ID segments for exact separation and sharp readouts.

3 search modes with six presets

Park, Field, and Beach modes, each holding two customizable presets.

Automatic interference cancellation and ground balance

Easier setup and more uniform performance.

Light and vibration

Red backlight and handle vibration alert for every setting.

Internal lithium battery

A 3.7V, 5100mAh battery sized to cover a full day out.

3-year warranty

Covers both the main unit and the coil alike.

Park 1 & 2 mode

Well fitted to gardens and crowded public areas full of debris, with two savable custom presets.

Field 1 & 2 mode

Centred on farmland and old archaeological sites, balancing depth and discrimination.

Beach 1 & 2 mode

Optimized for wet, salty sand using Multi-IQ technology to trim off-target readings.

All Metal mode

Senses all metals with no discrimination, well fitted to a rapid first scan of a new area.

Technical specs

Made In	Australia
Warranty	3 Years
Technology	Automatic Multi-IQ simultaneous multi-frequency
Park/Field Frequency	Multi-IQ, 15 kHz
Beach Frequency	Multi-IQ
Search Modes	Park 1-2, Field 1-2, Beach 1-2, All Metal
Interference Cancellation	Automatic
Sensitivity	1 to 25
Wireless Audio	Low-latency wireless audio
Volume	0 to 25
Target Tones	1, 2, 5, All Tones, Depth mode
Discrimination Segments	30 segments
Target ID	Ferrous: -19 to 0 / Non-ferrous: 1 to 99
Iron/Ferrous Control	-1 to 2
Depth Indicator	5 levels
Length	Extended: 138 cm (54 in) / Folded: 63 cm (25 in)
Weight	1.3 kg (2.9 lb)
Search Coil	V12X elliptical Double-D coil, 12x9 inch

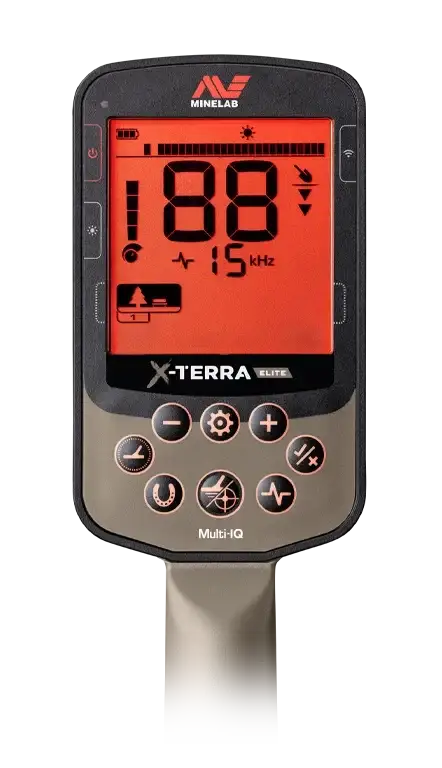

Display	Monochrome LCD display with red backlight
Battery	Internal 3.7V / 5100mAh lithium-ion battery
Water Resistance	Full device, up to 5 meters (IP68)
Vibration	Can be enabled/disabled, with special vibration for ferrous targets
Flashlight	Built-in flashlight
Manufacturer	Minelab
Capability Tier (site badge)	Professional
