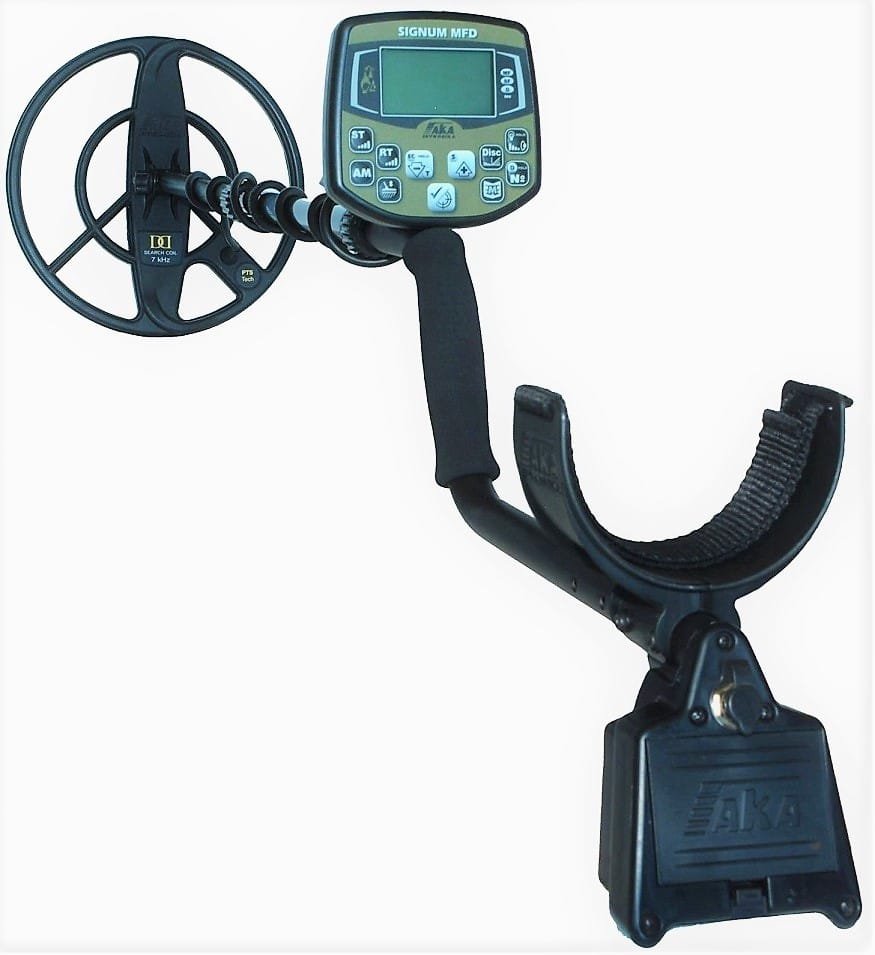

AKA Signum overview

Signum sits in AKA's range as a long-range locator built specifically for teams searching large open ground. It's built around a detection depth of 5-6 feet and selectable multi-frequency operation from 30 kHz.

What separates it day to day is space-harmonic filtering (sft), hodograph target id and 1-30 khz multi-frequency range — details that matter more once you're a few hours into a search than any spec sheet line.

It's made in Russia, and comes with a 2 years warranty.

AKA Signum key features

Space-Harmonic Filtering (SFT)

patented signal-processing technology unique to AKA that heightens up target classification and cuts off-target readings

Hodograph Target ID

displays a spectral-graphic hodograph of each target on the 128x64 LCD for exact, visual classification

1-30 kHz Multi-Frequency Range

transmits and processes signal covering a wide frequency band for flexibility covering soil types and target sizes

Turbo Deep-Search Mode

an additional program geared toward locating substantial objects at exceptional depth

Triple Discrimination Algorithms

toggle between MSF, SSF, and MM modes to match iron-heavy, mixed, or open terrain conditions

Automatic & Manual Ground Balance

self-corrects for mineral-dense soil with adjustable readjustment speed, or can be set manually

Waterproof Control Housing

sealed electronic control unit with a rapid-release, tool-free coil mount for rapid field swaps

Technical specs

Depth	5-6 feet
Made In	Russia
Warranty	2 Years
Operating Principle	VLF induction balance with space-harmonic filtering (SFT)
Operating Frequency	1-30 kHz (multi-frequency)
Detection Depth	5-6 feet
Display	128x64 pixel LCD with hodograph spectral-graphic target display
Search Modes	Dynamic and static, with RT (Real Time) and ST search channels
Discrimination Algorithms	MSF, SSF, MM selectable programs
Ground Balance	Automatic and manual, with adjustable auto-correction speed
User Programs	4 user-programmable presets with instant access
Coil Compatibility	Compatible with 22 AKA search coils, from 6" (14 kHz) to 18" deep-search DD coils (3 kHz)
Power Source	6 x 1.5V AA batteries
Battery Life	Up to 20 hours depending on mode
Weight	1.3 kg (without batteries, control unit only)
Housing	Waterproof control module, quick-release coil mount
Manufacturer	AKA Intronika
