OKM — EXP 6000 PRO+
OKM EXP 6000 PRO+
Meet the EXP 6000 PRO+ — OKM's ground-imaging system for survey teams and archaeologists, built around its 3D Scanner capability.
3D Scanner25m Depth
Rs 9,860,000
OKM EXP 6000 PRO+ price in Pakistan
The OKM EXP 6000 PRO+ price in Pakistan is Rs 9,860,000. Every unit is original with manufacturer warranty, and we deliver to every city in Pakistan.
OKM EXP 6000 PRO+ overview
If your work is engineers mapping voids before excavation, the EXP 6000 PRO+ from OKM is worth a look. Headline numbers: its 3D Scanner capability.
In practice, the standout parts of the package are wireless telescopic probe, six operation modes and carbon-fiber probe set. That combination is what makes it worth a look for survey teams and archaeologists.
The box ships with 13 items, enough to be field-ready out of the case.
OKM EXP 6000 PRO+ key features
Wireless Telescopic Probe
Extends to 124 cm and connects over WiFi, removing the need for trailing sensor cables
Six Operation Modes
combines 3D Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pinpointer, and Live Scan in one unit
Carbon-Fiber Probe Set
ships with the Telescopic Probe, Super Sensor, Live-Stream Sensor, and Tunnel Sensor, each rigid yet compact for lengthier field use
6.5-inch Touchscreen Control Unit
Displays live scan data at 1024 x 768 resolution, with a multilingual interface available in 12+ languages
Visualizer 3D Studio Professional Edition
reconstructs saved scans into rotatable, color-coded 3D models on the provided notebook for detailed post-scan analysis
Removable GPS Receiver
geo-tags scan locations directly from the telescopic rod handle for exact return-to-site mapping
Video Glasses Compatibility
sends a live scan feed to compatible smart glasses for hands-free work in the field
Technical specs
| Depth | 3D Scanner |
| Made In | Germany |
| Warranty | 2 Years |
| Operating Principle | SCMI-15-D Dual/Hexa Geophysical Phase Reader with 3D ground scanning |
| Detection Range | Up to 30 m wireless operating distance (line of sight) between probe and control unit |
| 3D Imaging Software | OKM Visualizer 3D Studio Professional Edition (included on pre-configured notebook) |
| Power Source | Rechargeable battery, 11.8-19 VDC, 50W max (control unit) |
| Weight | Control unit ~2.34 kg; telescopic rod ~1.76 kg; probes 0.76-1.04 kg each |
| Manufacturer | OKM |
| Control Unit Display | 6.5" touchscreen, 1024 x 768 pixels |
| Operating Modes | 3D Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pinpointer, Live Scan |
| Operating Time | Approx. 4 hours (control unit), approx. 5 hours (telescopic rod) at full charge, 25°C |
| Operating Temperature | -10°C to 50°C |
| Processor / Memory | QuadCore AMD @ 2GHz, 4GB RAM, 8GB microSD storage |
| Connectivity | WiFi 802.11n wireless probe connection |
| Probe Material | Carbon fiber, magnetic quick-mount connectors |

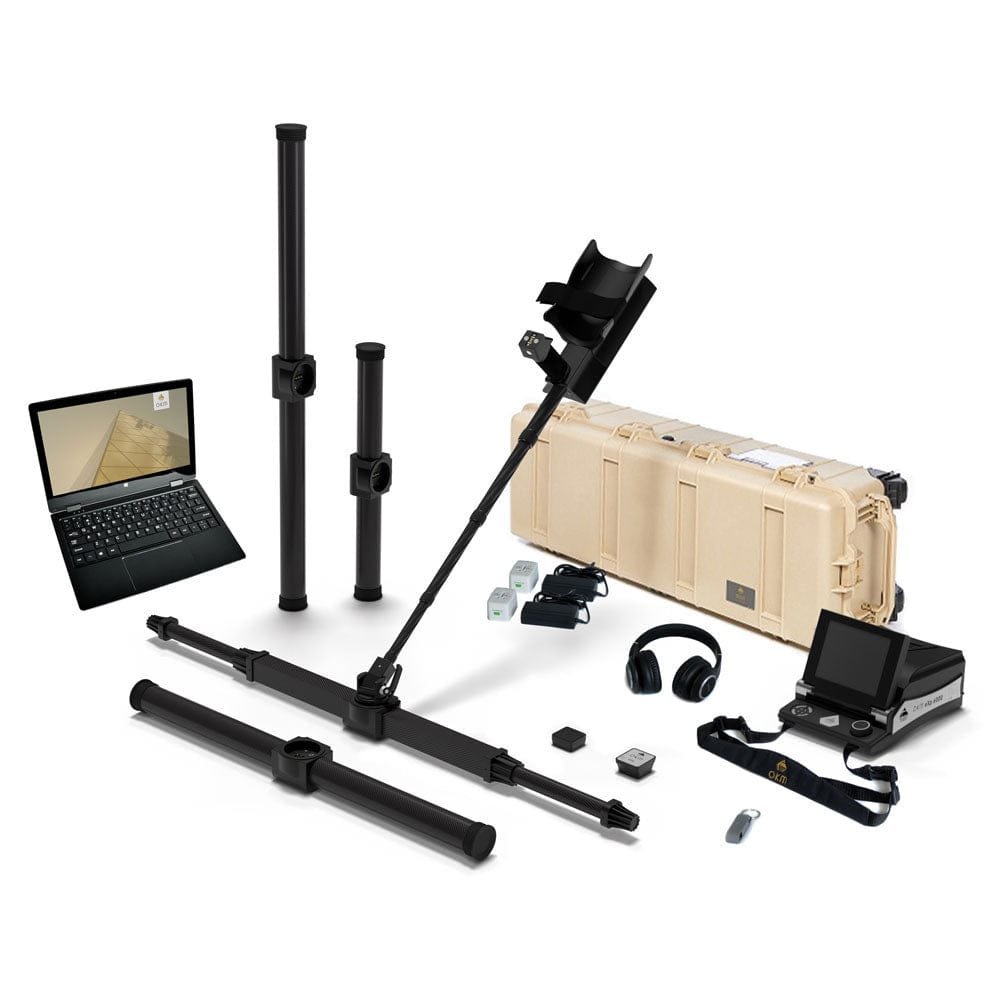

What's in the box
- 1x Control Unit
- 1x Wireless Telescopic Probe
- 1x Wireless Super Sensor
- 1x Wireless Live-Stream Sensor
- 1x Wireless Tunnel Sensor
- 1x Telescopic Rod with GPS Receiver Cap
- 1x Pre-configured Notebook
- 1x OKM Visualizer 3D Studio Professional Edition (software)
- 1x Bluetooth Headphones with charging cable
- 1x Charger with cable
- 1x Travel Adapter Set
- 1x Waterproof Protector Case
- 1x Quick Start Guide
